Brown Modeling Tooling Paste For Yacht Model / Benchmark Model Making

Brown Modeling Tooling Paste For Yacht Model / Benchmark Model Making

    • Brown Modeling Tooling Paste For Yacht Model / Benchmark Model Making
  • Brown Modeling Tooling Paste For Yacht Model / Benchmark Model Making

    Product Details:

    Place of Origin: China
    Brand Name: LH-tool®
    Certification: ISO9001:2008 Standard
    Model Number: LH5200 AB

    Payment & Shipping Terms:

    Minimum Order Quantity: 200kgs
    Price: Negotiation
    Packaging Details: Standard Carton Packing
    Delivery Time: 15 Days
    Payment Terms: T/T
    Supply Ability: 30 Tons per Month
    Contact Now
    Detailed Product Description
    Materials: Epoxy Resin Color: Brown
    Package: 10kg 15kg 20kg Density: 0.7-0.8
    Hardness: 60-70 Mixing Ratio: 1 More Than 1
    High Light:

    molding paste

    ,

    epoxy paste

    Brown Modeling Tooling Paste Epoxy Resin Materials Packing 10kg 15kg 20kg



    Product operation process



    Given according to the proportion of fully mixing thoroughly, the same color. Try to avoid to produce bubbles, it is best to use vacuum mixer mixing. Strict control, with a thick layer of a coating is not more than 40 mm;If upset, after waiting for curing the second floor. The after curing processing, performance is better. (after curing: 80 ℃ + 8 h or 3 days) at room temperature, curing can be after rough machining, precision work after 3 days;The material of metal, composite structure materials such as sticky relay is extremely strong, mold release agents shall be used for rolling over. Make sure the strength of the support frame, stability and cleanness, machine



    Product application

    1. Wind-power blades can be applied to the model of the male die, the cabin cover mould, automobile master model of casting mould board, checking fixture production, foundry industry, sand core boxes, and various modeling tools etc.

    2. used for sheet metal forming mould, tensile modulus, rolling zhong mold, mold, and the bending modulus.

    3. used for foaming mould, vacuum forming mould, injection mould, composite materials forming mould, etc

    4. quick samples/hand: for small batch production of plastic material.





    Introduction

    Material 5200A 5200B Mixed
    Description epoxy resin curing agent
    mixing ration 1 1
    Color: Brown Yellow Brown
    mixed time:500g,25°(min)     30
    curing time before machining(20-25mm) (hours)     6-8
    layer thickness (mm)     max.40
    Density:(g/cm³):     0.7-0.8
    Hardness(Shore D):     65-70
    Temperature Resistance(°C):     70-75
    Coefficient of Thermal Expansion(10-6 K-1):     45-50
    Compressive Strength(N/mm²):     16.2
    Flexural Strength(N/mm²):     19.2
    Tensile Strength(N/mm²):     12.4
    Package(kg) 10 10

    Characteristics:

    easily shaped and machined,fine surface structure

    Applications:

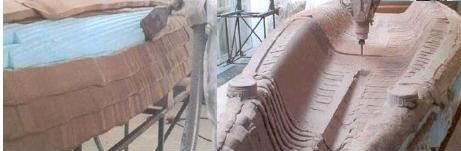

    yacht model,benchmark model, system and sand-cast model, rapid prototype,etc.
