High Hardness Polyurethane Model Board For Vacuum Forming / Thermoforming

High Hardness Polyurethane Model Board For Vacuum Forming / Thermoforming

    • High Hardness Polyurethane Model Board For Vacuum Forming / Thermoforming
  • High Hardness Polyurethane Model Board For Vacuum Forming / Thermoforming

    Product Details:

    Place of Origin: China
    Brand Name: LH-tool®
    Certification: ISO9001:2008 Standard
    Model Number: MB5100

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Sheets
    Price: Negotiation
    Packaging Details: Standard Carton Packing
    Delivery Time: 15 Days
    Payment Terms: T/T
    Supply Ability: 2000 Sheets Month
    Contact Now
    Detailed Product Description
    Materials: Polyurethane Color: Beige
    Size: 750*500* 1500*500* 1000*500 Density: 1.0
    Hardness: 75-80 Thickness: 35mm 50mm 75mm 100mm
    High Light:

    epoxy tooling block

    ,

    modeling foam blocks

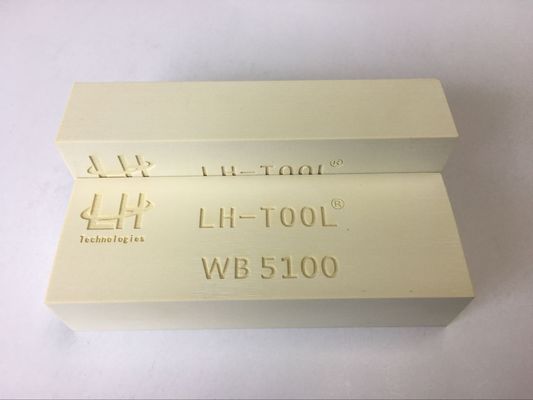

    MB5100 Beige Polyurethane Tooling Board Size 750mm - 500mm 1500mm-500mm 1000mm-500mm



    Application

    • Master pattern,Modling Prepreg CF autoclave cured
    • Checking fixture,jig Foundry,Casting
    • Automobile model Protyping,patterns
    • Vacuum forming,thermoforming Shoe patterns,Shoe mould

    KEY PROPERTIES

    • Easy workability High dimensional stability
    • Cost effective Good compressive strength
    • High Temperature and chemical resistance Large sheet sizes available
    • Smooth, non-porous surface finish Low coefficient of thermal expansion
    Description
    Density:(g/cm³): 1.0
    Hardness(Shore D): 80
    Compressive Strength(N/mm²): 60
    Temperature Resistance(°C): 80
    Coefficient of Thermal Expansion: 45
    Flexural Strength(N/mm²): 50
    Tensile Strength(N/mm²): 35
    Dimension(mm)







    (L*W*H)1000*500*50/75/100

    (L*W*H)750*500*50/75/100





    Tooling boards take the place of wood and metal in master models, prototype tooling, patterns, molds, jigs and fixtures. They are lighter and more economical than steel and aluminum. They also do not suffer from the grain and poor dimensional stability of wood.
