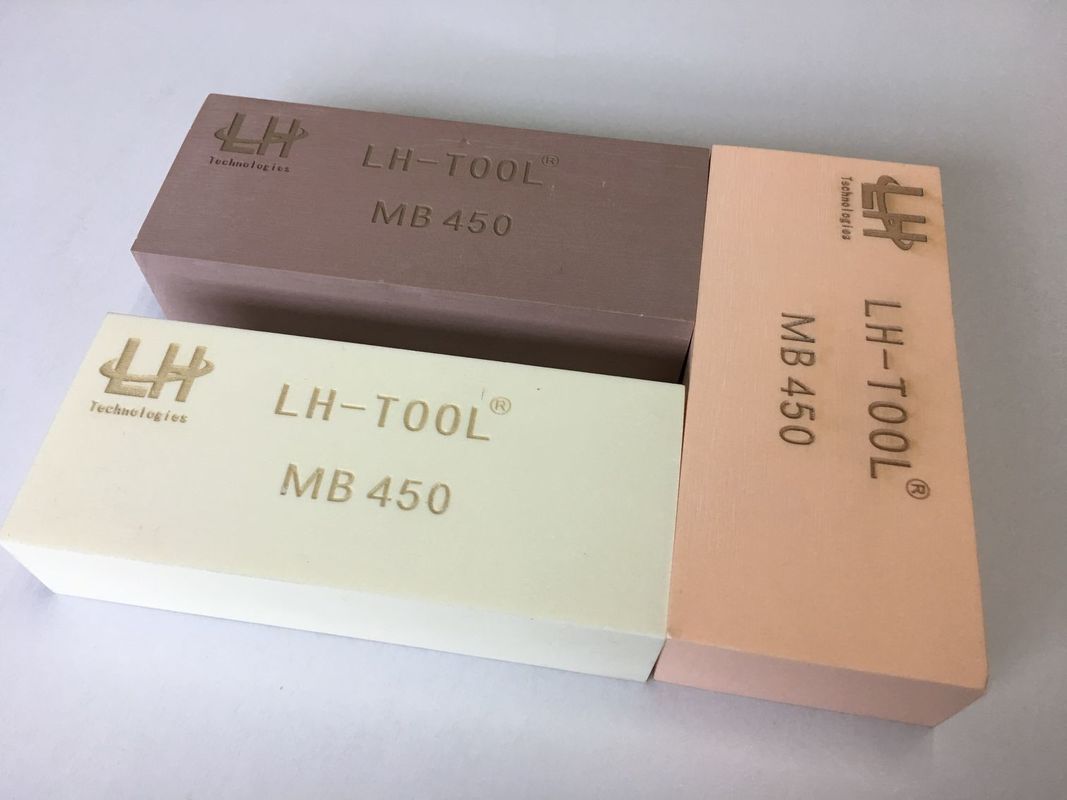

Epoxy Resin Tooling Board 0.73 Density High Temperature Resistance OEM / ODM

Epoxy Resin Tooling Board 0.73 Density High Temperature Resistance OEM / ODM

    • Epoxy Resin Tooling Board 0.73 Density High Temperature Resistance OEM / ODM
  • Epoxy Resin Tooling Board 0.73 Density High Temperature Resistance OEM / ODM

    Product Details:

    Place of Origin: China
    Brand Name: LH-tool®
    Certification: ISO9001:2008 Standard
    Model Number: MB450

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Sheets
    Price: Negotiation
    Packaging Details: Standard Carton Packing
    Delivery Time: 15 Days
    Payment Terms: T/T
    Supply Ability: 2000 Sheets Month
    Contact Now
    Detailed Product Description
    Materials: Epoxy Resin Color: Beige
    Size: 750*500* 1500*500* Density: 0.73
    Hardness: 65-70 Thickness: 35mm 50mm 75mm 100mm
    High Light:

    high density polyurethane sheet

    ,

    high density foam for modelling

    MB450 High Density Tooling Foam Size 750mm - 500mm 1500mm-500mm



    Introduction

    • We insist on the philosophy of innovation, people-oriented, integrity and mutual benefit, sustainable development, create new value for our customers.

      Our main products are widely used in project of new mold, model, gauge, fixture in the field of automobile, aviation, household appliances, toys, shipbuilding industry, wind power, etc

    Application

    • Master pattern,Modling Prepreg CF autoclave cured
    • Checking fixture,jig Foundry,Casting
    • Automobile model Protyping,patterns
    • Vacuum forming,thermoforming Shoe patterns,Shoe mould

    KEY PROPERTIES

    • Easy workability High dimensional stability
    • Cost effective Good compressive strength
    • High Temperature and chemical resistance Large sheet sizes available
    • Smooth, non-porous surface finish Low coefficient of thermal expansion
    Description
    Density:(g/cm³): 0.73
    Hardness(Shore D): 68
    Compressive Strength(N/mm²): 30
    Temperature Resistance(°C): 70
    Coefficient of Thermal Expansion: 44.5
    Flexural Strength(N/mm²): 40.5
    Tensile Strength(N/mm²): 26.5
    Dimension(mm)







    (L*W*H)1500*500*50/75/100

    (L*W*H)750*500*50/75/100
