| Place of Origin: | China |
| Brand Name: | LH-tool® |
| Certification: | ISO9001:2008 Standard |
| Model Number: | LH-1600MB |
| Minimum Order Quantity: | 10 Sheets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Carton Packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 Sheets Month |
| Materials: | Polyurethane | Color: | Beige |
|---|---|---|---|
| Size: | 1500*500* 1000*500* | Density: | 1.6 |
| Hardness: | 85-90 | Thickness: | 35mm 50mm 75mm 100mm-200mm |
| High Light: | 1600KG/M3 High Density Polyurethane Board,35mm High Density Polyurethane Board,Beige Epoxy Tooling Board |
||

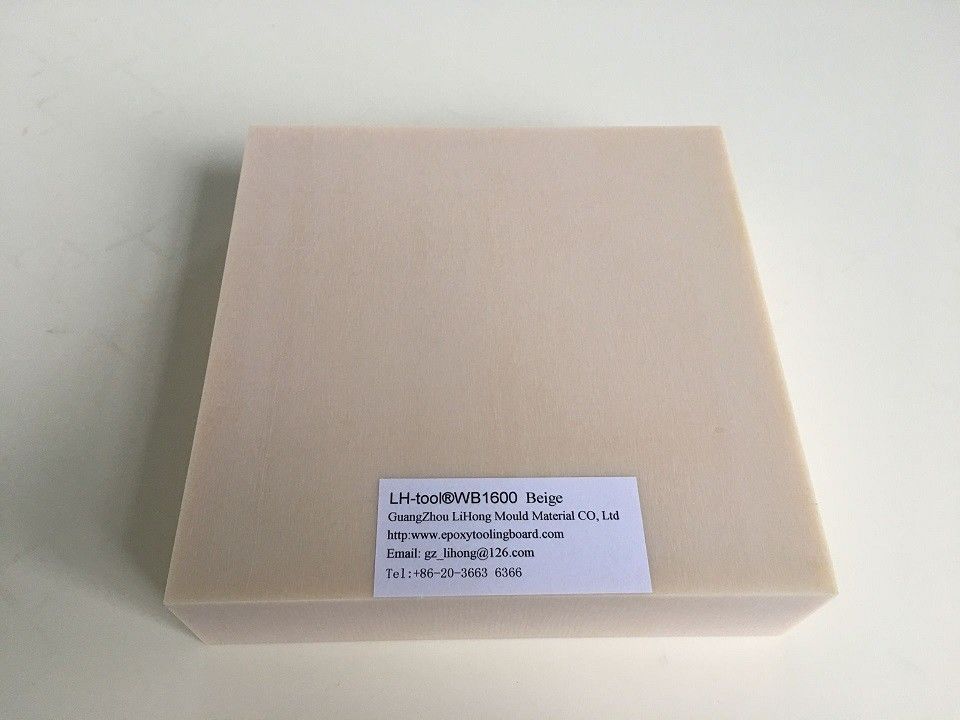

High density polyurethane board 1600KG/M3, instead of metal suitable for washing processing
A metal-like, beige polyurethane board filled with aluminum, with a density of about 100 lb/ft3. 1600 kg per cubic meter, it is dimensional stability, and demonstrated excellent cutting performance. MB-1600 mold plate will significantly save blank aluminum mold material. This kind of polyurethane plate can replace metal processing. Its advantage is that the processing speed is fast, it can save time and provide efficiency
Density: 100 lb/ft after | color: beigr/aluminum
| LH-Tool MB-1600 Tooling Board | Aluminum-Filled Polyurethane |
A metal-like, aluminum-filled beige colored urethane board approximately with a ~100 lb/ft3 density. It is dimensionally stable and exhibits excellent machinable properties. MB-1600 tooling board will show a significant savings on billet aluminum tooling materials.
|
| Style No | Color | Density(g/cm3) | HardnessShore D | Coefficient Thermal Expansion (in./in./°F x 10-6K-1 |
Deflection Temperature(°C)1.82Mpa | Dimension(mm) | Characteristics and Application |
| LH-tool®1600MB | Beige | 1.6 | 85-90 | 45-50 | 100-150 | 1000x500x(50/75/100) 750x500x(50/75/100) | high density board, smooth surface, high temperature resistance, suitable for blister box, sand core box |
