Place of Origin: | China |
Brand Name: | LH-tool® |
Certification: | ISO9001:2008 Standard |
Model Number: | LH800 |
Minimum Order Quantity: | 15Sheets |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Carton Packing |
Delivery Time: | 15 Days |
Payment Terms: | T/T |
Supply Ability: | 3000 Sheets Month |
Materials: | Polyurethane | Color: | Beige |
---|---|---|---|
Size: | 1500*500* 1000*500* | Density: | 1.0 |
Hardness: | 75-80 | Thickness: | 35mm 50mm 75mm 100mm |
High Light: | Density 1.0 Polyurethane Model Board,Beige Polyurethane Model Board,Hardness 80 Polyurethane Model Board |

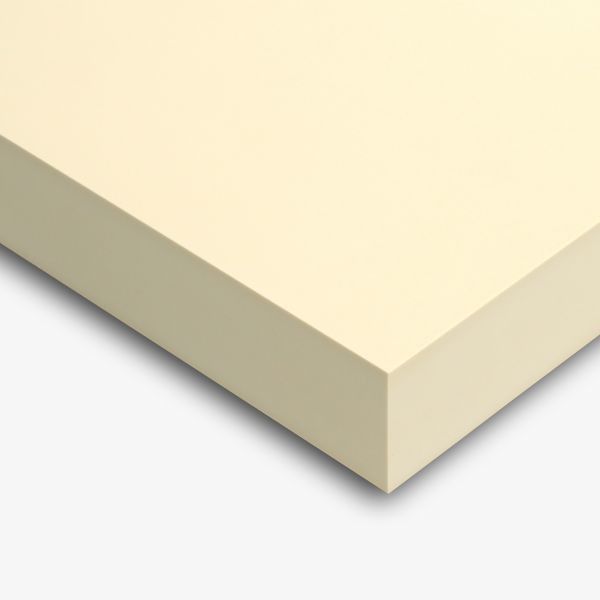

Medium density 1.0 High temperatue 800 Polyurethane Board For Blibox Sand Core Die
In our range of polyurethane boards we have a high temperature resistant product with a low density of 700 to 1000 kg/m3. This product is known for its machinability, finish and durability in the manufacture of high quality molds and model boards, especially in high temperature resistant environments
In addition to being resistant to high temperatures, this high temperature resistant material is dimensional stable and does not deform at temperatures up to 200 degrees. It can help engineers, model makers, mechanical designers and prototype developers meet the requirements of aeronautical, vacuum modeling and sand core box molds and high temperature resistant molds
Designed for tool use up to 250C is ideal for building master models, and other heat-resistant tools. This low density has a very low coefficient of thermal expansion to produce excellent accuracy and dimensional stability.
TECHNICAL DATA
Colour | ivory or grey |
Coefficient of thermal expansion | approx. 45 x 10-6 K-1 |
Temperature resistance | approx. 72 °C |
Shore D | approx. 80 |
Compressive strength | approx. 46 N/mm² |
Flexural strength | approx. 61 N/mm² |
Density | approx. 1.00 g/cm³ |
Abrasion resistance (at defined parameters) | approx. 1,000 mm³ |
Fire protection classification | B2 |
Electrical current resistance | approx. - Ω x cm |
Notched impact strength | approx. - kJ/m² |
Thermal conductivity | approx. - W/mk |
Modulus of elasticity | approx. 1,670 MPa |
CHARACTERISTICS
APPLICATIONS
DIMENSIONS
1.000 x 500 x 50 mm
1.000 x 500 x 75 mm
1.000 x 500 x 100 mm
Surfaces machined parallel.
Other dimensions on request.
DOWNLOADS
Data sheet (PDF-format)
Saftey data sheet (PDF-format)
