High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making

High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making

    • High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making
  • High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making

    Product Details:

    Place of Origin: China
    Brand Name: LH-tool®
    Certification: ISO9001:2008 Standard
    Model Number: MB1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Sheets
    Price: Negotiation
    Packaging Details: Standard Carton Packing
    Delivery Time: 15 Days
    Payment Terms: T/T
    Supply Ability: 2000 Sheets Month
    Contact Now
    Detailed Product Description
    Materials: Polyurethane Color: Beige
    Size: 750*500* 1500*500* 1000*500 Density: 1.0
    Hardness: 75-80 Thickness: 35mm 50mm 75mm 100mm
    High Light:

    tooling board suppliers

    ,

    modeling foam blocks

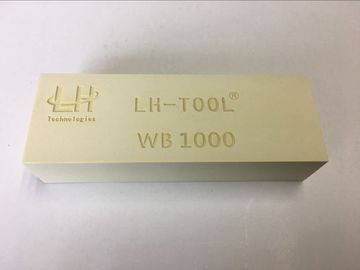

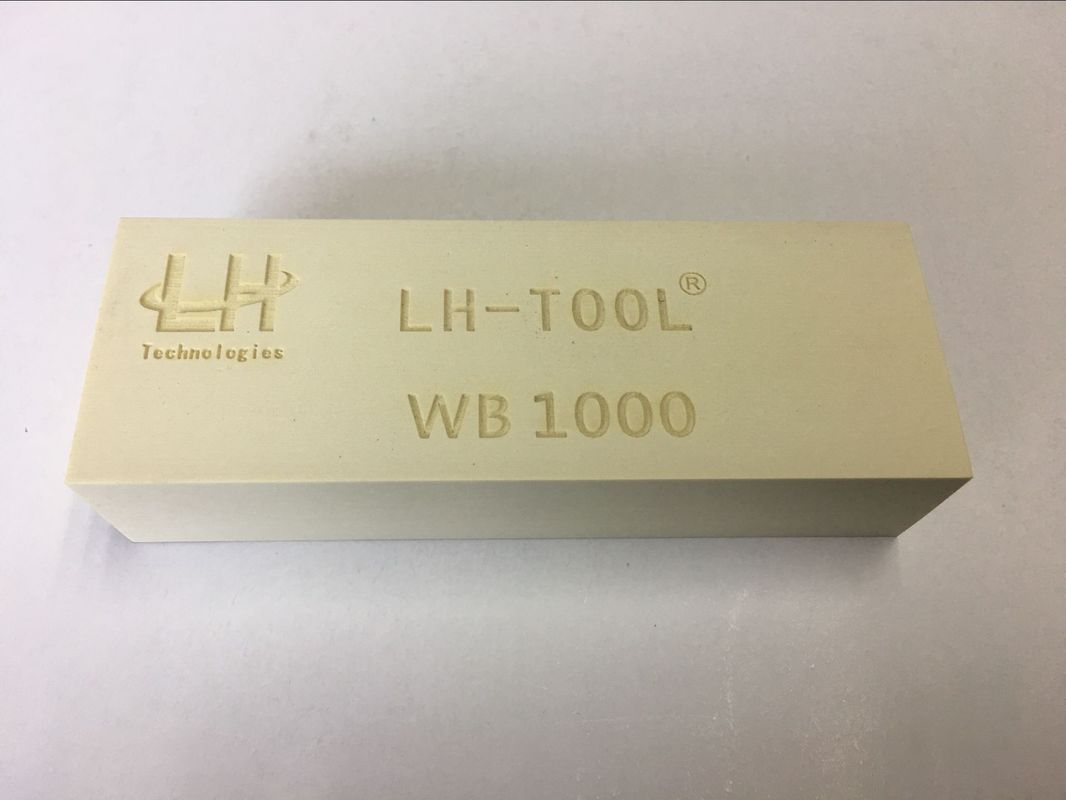

    MB1000 Beige Polyurethane Tooling Board Size 750mm - 500mm 1500mm-500mm 1000mm-500mm



    Introduction





    • Modeling board,tooling borad,epoxy tooling boards and polyurethane tooling baords are heavily used in the automotive industry as well as other industries where prototyping and modeling work is required.
    • LH Tooling board,modeling board, epoxy resin board,PU board, polyurethane tooling board ,Processability Same As Renshape, NECUMER,RAMPF (RAKU-TOOL),AXSON (LAB),HUNTSMAN etc.

    • We are also specialists in dimensional checking fixtures to control the manufacturing process of all types of parts of the industrial sector, more particularly the automotive sector. All our production process - design, manufacture and certification - is done in-house, to control it perfectly.

    Description
    Density:(g/cm³): 1.0
    Hardness(Shore D): 80
    Compressive Strength(N/mm²): 60
    Temperature Resistance(°C): 80
    Coefficient of Thermal Expansion: 45
    Flexural Strength(N/mm²): 50
    Tensile Strength(N/mm²): 35
    Dimension(mm)







    (L*W*H)1000*500*50/75/100

    (L*W*H)750*500*50/75/100





    Application

    • Master pattern,Modling Prepreg CF autoclave cured
    • Checking fixture,jig Foundry,Casting
    • Automobile model Protyping,patterns
    • Vacuum forming,thermoforming Shoe patterns,Shoe mould



    High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making 0





    High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making 1


    High Compressive Strength Epoxy Tooling Board For Shoes Sole Mould Making 2
