High Density Urethane Blocks Modeling Boards As Foundry Pattern Materials
Product Details
| Materials: | Polyurethane | Color: | Grey |
|---|---|---|---|
| Size: | 750*500* 1000*500* | Density: | 1.20 |
| Hardness: | 80-85 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
high density urethane blocks,machinable foam blocks |
||
Product Description

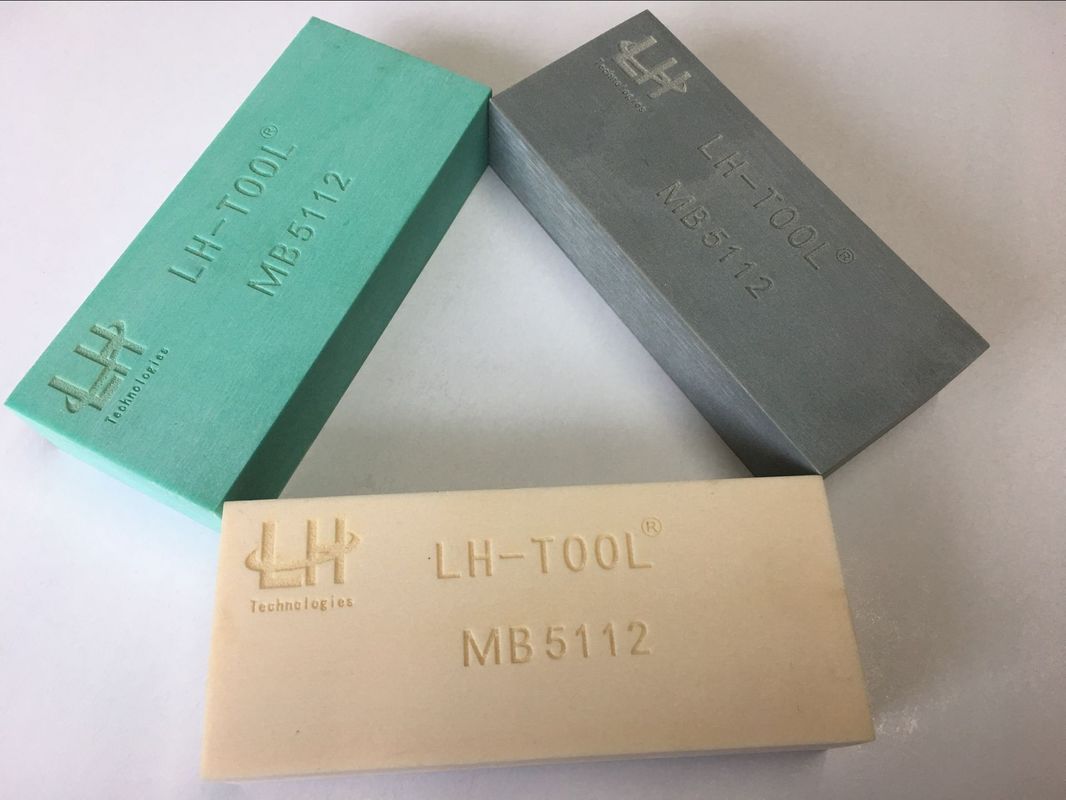

MB5112 Grey Polyurethane Epoxy Tooling Block Size 750mm - 500mm 1000mm-500mm
DESCRIPTION
LiHongTooling Board is especially noteworthy for its smooth and homogeneous surface combined with an even cell structure. It has a high edge stability, small thermal expansion coefficient, low dust formation when being machined, no known physiological effects and odeurs or smell. The range consists of 15 different types, varying in density between 600 - 1300 kg m3. There are 20 different dimensions to a maximum of 1500x500 mm and thicknesses of up to 100 mm are available. Larger blocks can be achieved when bonding several blocks to eachother.
PolyurethaneTooling board, the toughness, environmental protection, hardness, size stability, temperature tolerance, physical properties such as compressive strength, bending strength is quite good.
We are quietly supporting these industries, automobiles, high-speed rail, shipbuilding, aviation, ceramics, foundry industry and daily necessities manufacturing and related industrieschecking fixtures, mold, wind power and yacht . Maybe we are also suitable for your product, can try, may have unexpected harvest.
Modeling boards are useful in numerous applications including patterns, master models, and presentation models.,foundry patterns, metal forming applications, jigs, and checking fixtures, yacht models,wind power and craft models...etc.
USES
1. Design studies
2. CNC program proving/testing.
3. Building Landscapes/Features in architectural and scenario models
4. Forming a mould tool for prototyping short runs of composite parts.
5. Use for jigs, fixtures, foundry patterns, core boxes.vacuum forming molds and all kinds of models.
| Density:(g/cm³): | ～ | 1.20 |
| Hardness(Shore D): | ～ | 82 |
| Compressive Strength(N/mm²): | ～ | 90 |
| Temperature Resistance(°C): | ～ | 80 |
| Coefficient of Thermal Expansion: | ～ | 48 |
| Flexural Strength(N/mm²): | ～ | 60.5 |
| Tensile Strength(N/mm²): | ～ | 30.2 |
| Dimension(mm) |
|
(L*W)1000*500*50/75/100 (L*W)750*500*50/75/100 |
