Polyurethane High Density Foam For Modelling , Epoxy Tooling Board Smooth Finish
Product Details
| Materials: | Polyurethane | Color: | Beige/red/grey |
|---|---|---|---|
| Size: | 750*500* 1000*500* | Density: | 1.25 |
| Hardness: | 80-85 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
high density rigid polyurethane foam,high density polystyrene foam blocks |
||
Product Description

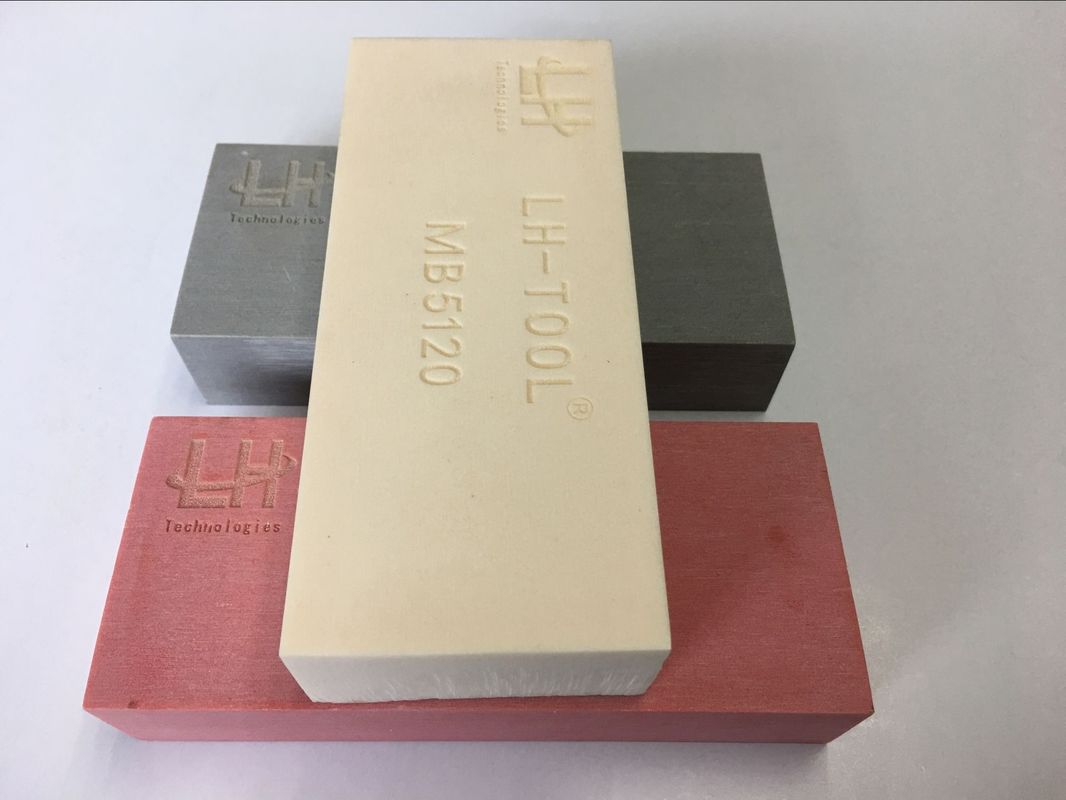

MB5120 Polyurethane High Density Model Board Size 750mm - 500mm 1000mm-500mm
DESCRIPTION
LihongTooling Board has been developed as a polyurethane based material for model and tool making and the manufacturing of checking fixtures and test units. Due to a special specification and a manufacturing method optimized over many years, it is possible to retain the product qualities even in the case of large board dimensions.
Features
1). Low conductivity factor
2). Good fire-blocking
3). Closed pore foaming, good damp-proof property
4). Good pliability
KEY PROPERTIES
1. Easy workability • High dimensional stability
2. Cost effective • Good compressive strength
3. High Temperature and chemical resistance • Large sheet sizes available
4. Smooth, non-porous surface finish • Low coefficient of thermal expansion
Description
| Density:(g/cm³): | ～ | 1.25 |
| Hardness(Shore D): | ～ | 84 |
| Compressive Strength(N/mm²): | ～ | 92 |
| Temperature Resistance(°C): | ～ | 80 |
| Coefficient of Thermal Expansion: | ～ | 48 |
| Flexural Strength(N/mm²): | ～ | 60.5 |
| Tensile Strength(N/mm²): | ～ | 30.2 |
| Dimension(mm) |
|
(L*W*H)1000*500*50/75/100 (L*W*H)750*500*50/75/100 |
