| Place of Origin: | China |
| Brand Name: | LH-tool® |
| Certification: | ISO9001:2008 Standard |
| Model Number: | MB840 |
| Minimum Order Quantity: | 10 Sheets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Carton Packing |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 Sheets Month |
| Materials: | Polyurethane | Color: | Purple |
|---|---|---|---|
| Size: | 750*500* 1000*500* | Density: | 1.0 |
| Hardness: | 75-80 | Thickness: | 35mm 50mm 75mm 100mm |
| High Light: | foam board for model making,cnc tooling board |
||

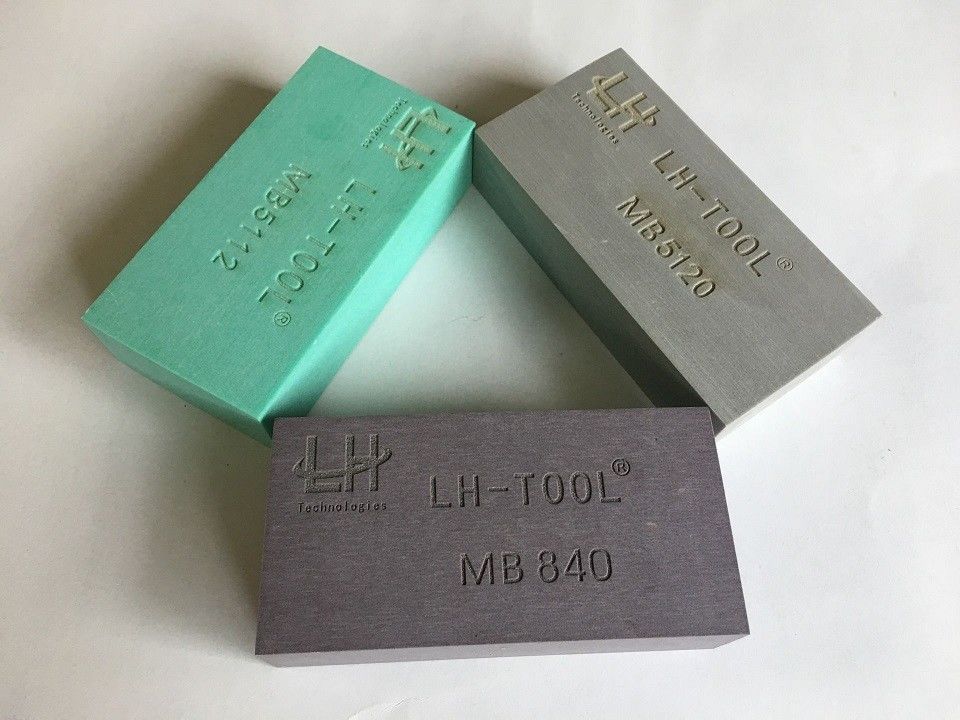

Thickness 35mm Epoxy Tooling Board Smooth Non - Porous Surface Finish
| Company Name | Country/Region | Products You Supply |
|---|---|---|
| Hyvision | Brazil | 4k projector |
| Robert | United States | 3D printing service |
| Marco | Italy | 3D printer |
DESCRIPTION
Tooling boards are useful for creating durable, reusable tools, prototypes, models and patterns with a CNC machine for use in the motor sport and automotive industries. Selecting the most fit for purpose tooling board will reduce residual particles for easy cleanup, have excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.
| Density:(g/cm³): | ～ | 1.0 |
| Hardness(Shore D): | ～ | 75-80 |
| Compressive Strength(N/mm²): | ～ | 80 |
| Temperature Resistance(°C): | ～ | 75-80 |
| Coefficient of Thermal Expansion: | ～ | 44 |
| Flexural Strength(N/mm²): | ～ | 75 |
| Tensile Strength(N/mm²): | ～ | 32 |
| Dimension(mm) |
|
(L*W)1000*500*50/75/100 (L*W)750*500*50/75/100 |
Application
KEY PROPERTIES
