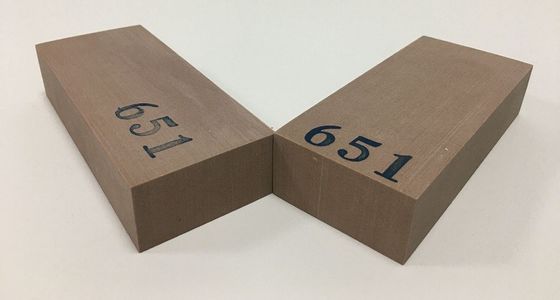

65 Hardness 0.7g/Cm3 Polyurethane Tooling Board Thickness 30mm
Product Details
| Materials: | Polyurethane | Color: | Brown |
|---|---|---|---|
| Size: | 1500*500* 1000*500* 750x500 | Density: | 0.70 |
| Hardness: | 65-67 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
0.7g/Cm3 Polyurethane Tooling Board,65 Hardness Polyurethane Tooling Board,750x500 Epoxy Tooling Board |
||
Product Description
Low density 0.7g/cm3 brown color polyurethane board No dust in processing replace Necuron651
Brown color thickness 30-200mm 0.7g/Cm3 Polyurethane Tooling Board
TECHNICAL DATA
| Colour | Brown |
| Coefficient of thermal expansion | approx. 40 x 10-6 K-1 |
| Temperature resistance | approx. 65 °C |
| Shore D | approx. 70 |
| Compressive strength | approx. 25 N/mm² |
| Flexural strength | approx. 27 N/mm² |
| Density | approx. 0.70 g/cm³ |
| Abrasion resistance (at defined parameters) | approx. - mm³ |
| Electrical current resistance | approx. - Ω x cm |
| Notched impact strength | approx. - kJ/m² |
| Thermal conductivity | approx. 0.11 W/mk |
CHARACTERISTICS
- very fine structure
- smooth and paintable surface
- excellent processing properties
APPLICATIONS
- master and copy models
- cubing and data models
- general modelling
DIMENSIONS
1.500 x 500 x 40 mm
1.500 x 500 x 50 mm
1.500 x 500 x 60 mm
1.500 x 500 x 75 mm
1.500 x 500 x 100 mm
1.500 x 500 x 130 mm
1.500 x 500 x 150 mm
1.500 x 600 x 50 mm
1.500 x 600 x 75 mm
1.500 x 600 x 100 mm
1.500 x 600 x 150 mm
Surfaces machined parallel.
Other dimensions on request.
