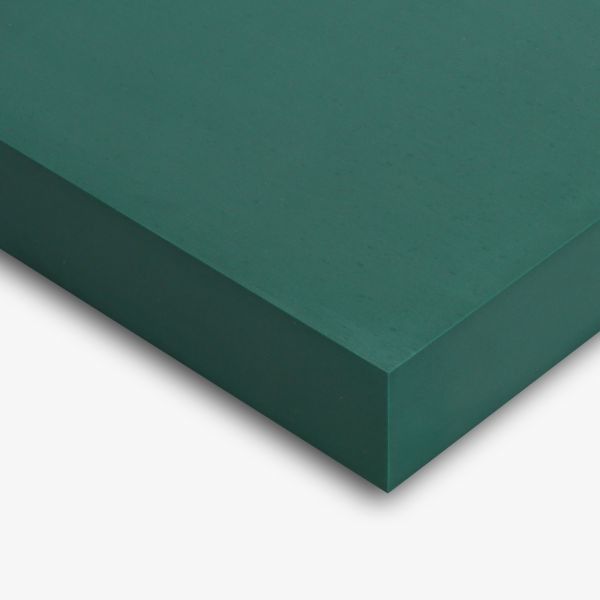

Dark Green Machined Epoxy Tooling Board Weather Resistant
Product Details
| Materials: | Polyurethane | Color: | Dark Green |
|---|---|---|---|
| Size: | 1500*500* 1000*500* | Density: | 1.20 |
| Hardness: | 82 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
Dark Green Epoxy Tooling Board,82 Hardness Epoxy Tooling Board,Weather Resistant Epoxy Tooling Board |
||
Product Description
Dark green density 1.20 size 1000x500, thickness 50-100mm weather resistant, high smoothness machined board
LH-Tool attaches great importance to the quality of its products. A continuous improvement process that steadily optimizes the quality of products, processes and services.
Depending on the requirements of the model or mold, different plates with densities ranging from 1200 kg/m³ can be selected. The wide range of densities allows us to select suitable plates in terms of surface quality and mechanical properties.
Due to low CTE, epoxy plates provide high heat resistance and excellent dimensional stability for use in prepreg applications.
Product information on LH-TOOL® 1460
TECHNICAL DATA
| Colour | Dark green |
| Coefficient of thermal expansion | approx. 66 x 10-6 K-1 |
| Temperature resistance | approx. 70 °C |
| Shore D | approx. 82 |
| Compressive strength | approx. 82 N/mm² |
| Flexural strength | approx. 81 N/mm² |
| Density | approx. 1.20 g/cm³ |
| Abrasion resistance (at defined parameters) | approx. 400 mm³ |
| Fire protection classification | B2 |
| Electrical current resistance | approx. - Ω x cm |
| Notched impact strength | approx. 11.3 kJ/m² |
| Thermal conductivity | approx. - W/mk |
| Modulus of elasticity | approx. 2,730 MPa |
CHARACTERISTICS
- very high flexural strength, compressive strength and abrasion resistance
APPLICATIONS
- Hammer form and flanging tools
- foundry models with high mechanical stress
- foundry assemblies and core boxes
- sheet metal forming tools and metal bending tools for thin sheet metal
- design models
DIMENSIONS
1.000 x 500 x 50 mm
1.000 x 500 x 75 mm
1.000 x 500 x 100 mm
Surfaces machined parallel.
Other dimensions on request.
