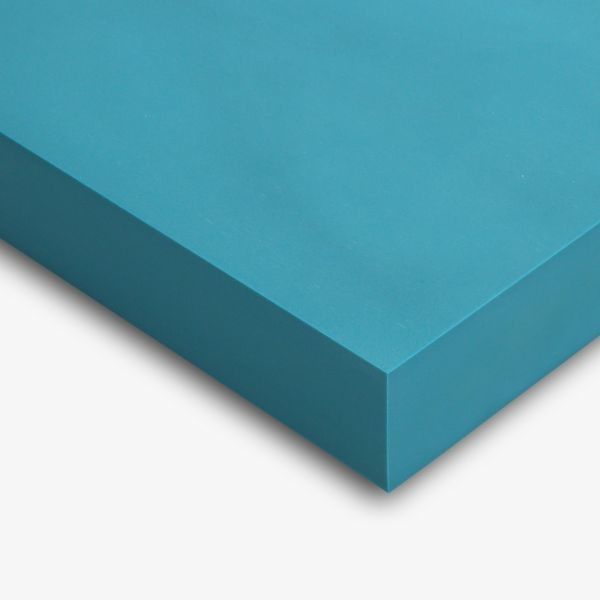

Blue Vacuum Blister Epoxy Tooling Board Density 1.25 Thickness 30mm
Product Details
| Materials: | Polyurethane | Color: | Blue |
|---|---|---|---|
| Size: | 1500*500* 1000*500* | Density: | 1.25 |
| Hardness: | 80 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
Density 1.25 Epoxy Tooling Board,30mm Thickness Epoxy Tooling Board,Vacuum Blister Epoxy Tooling Board |
||
Product Description
Color Blue density 1.25, size 1000x500, thickness 30-200mm vacuum blister mold processing board
Depending on the requirements of the model or mold, different plates with densities ranging from 1250 kg/m³ can be selected. The wide range of densities allows us to select suitable plates in terms of surface quality and mechanical properties.
Due to low CTE, epoxy plates provide high heat resistance and excellent dimensional stability for use in prepreg applications.
TECHNICAL DATA
| Colour | Blue |
| Coefficient of thermal expansion | approx. 65 x 10-6 K-1 |
| Temperature resistance | approx. 65 °C |
| Shore D | approx. 80 |
| Compressive strength | approx. 88 N/mm² |
| Flexural strength | approx. 97 N/mm² |
| Density | approx. 1.25 g/cm³ |
| Abrasion resistance (at defined parameters) | approx. 120 mm³ |
| Fire protection classification | B2 |
| Electrical current resistance | approx. - Ω x cm |
| Notched impact strength | approx. 14.3 kJ/m² |
| Thermal conductivity | approx. - W/mk |
| Modulus of elasticity | approx. 2,679 Mpa |
Product information on LH-TOOL® 5112
CHARACTERISTICS
- high flexural strength, compressive strength and abrasion resistance
APPLICATIONS
- hammer form and flanging tools
- foundry models with high mechanical stress
- foundry assemblies and core boxes
- high flexural strength, compressive strength and abrasion resistance
DIMENSIONS
1.200 x 400 x 50 mm
1.200 x 400 x 75 mm
1.200 x 400 x 100 mm
1.000 x 500 x 50 mm
1.000 x 500 x 75 mm
1.000 x 500 x 100 mm
Surfaces machined parallel.
Other dimensions on request.
