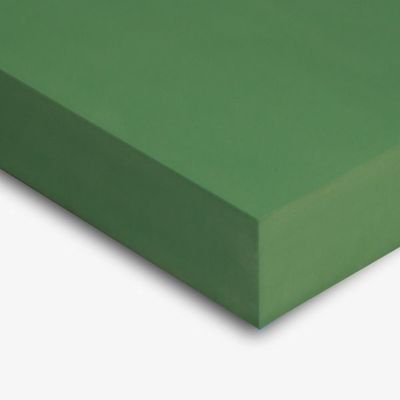

Green 650Kg/M3 Epoxy Tooling Board Master Models For Tire Industry

Green 650Kg/M3 Epoxy Tooling Board Master Models For Tire Industry

  • Green 650Kg/M3 Epoxy Tooling Board Master Models For Tire Industry
Green 650Kg/M3 Epoxy Tooling Board Master Models For Tire Industry
Product Details:
Place of Origin: China
Brand Name: LH-tool®
Certification: ISO9001:2008 Standard
Model Number: LH-650
Payment & Shipping Terms:
Minimum Order Quantity: 20Sheets
Price: Negotiation
Packaging Details: Standard Carton Packing
Delivery Time: 15 Days
Payment Terms: T/T
Supply Ability: 3000 Sheets Month
Contact Now
Detailed Product Description
Materials: EPOXY Color: Green
Size: 1500*500* 1000*500* Density: 0.65
Hardness: 40-50D Thickness: 35mm 50mm 75mm 100mm
High Light:

650Kg/M3 Epoxy Tooling Board

,

Green Epoxy Tooling Board

,

35mm Thickness Epoxy Tooling Board

Green color Density 650 kg/m3 master models especially for the shoe and tire industry



LH-Tool attaches great importance to the quality of its products. A continuous improvement process that steadily optimizes the quality of products, processes and services.





TECHNICAL DATA

Colour green
Coefficient of thermal expansion approx. 51 x 10-6 K-1
Temperature resistance approx. - °C
Shore D approx. 40-45
Compressive strength approx. - N/mm²
Flexural strength approx. - N/mm²
Density approx. 0.65 g/cm³
Abrasion resistance (at defined parameters) approx. - mm³
Fire protection classification -
Electrical current resistance approx. - Ω x cm
Notched impact strength approx. - kJ/m²
Thermal conductivity approx. - W/mk



CHARACTERISTICS

  • very fine structure
  • smooth and paintable surface
  • excellent processing properties
  • flexible

APPLICATIONS

  • master models especially for the shoe and tire industry



DIMENSIONS

1.500 x 500 x 50 mm

Surfaces machined parallel.
Other dimensions on request.


Product information on LH-TOOL® 650



Green 650Kg/M3 Epoxy Tooling Board Master Models For Tire Industry 0
