High Precision Modeling Boards MB-0600 50-55D Brown Density 0.60cm/Cm3
Product Details
| Materials: | Polyurethane | Color: | Brown |
|---|---|---|---|
| Size: | 1500x500 | Density: | 0.60 |
| Hardness: | 50-55 | Thickness: | 35mm 50mm 75mm 100mm |
| Highlight |
Modeling Boards MB-0600,High Precision Epoxy Modeling Boards |
||
Product Description
MB-0600 50-55D Brown density 0.60 cm/cm3 Modeling Boards Master models, Cubing models, Patterns
LH-TOOL MB-0600
High precision, high performance, for appearance design and modeling
· Brown in color
· Density 0.6g /cm3
· Focus on milling technology
· Produce models quickly and easily
· Precise surface structure
· Good dimensional stability
· Low coefficient of thermal expansion
Model Board (MB)
The LH® TOOL model board combines excellent quality with outstanding mechanical properties, making it a true trailblazer's masterpiece.
LH produced block polyurethane model plates in 2009.
New products are developed and existing products are constantly improved.
LH® TOOL model plates are semi-finished -- prefabricated rectangular plates -- manufactured in polyurethane and bonded into a variety of shapes and sizes.
The LH® TOOL adhesive matches the hardness and color of the board.

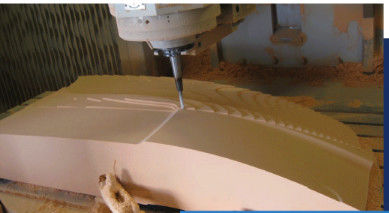

The model board can be machined quickly and easily on a CNC machine, or manually in some cases.
These polyurethane sheets are available in the density range of 0.6 to 0.72 g/cm3 and offer a number of outstanding properties such as good chip formation, fine finish and excellent dimensional stability.
If you choose the LH® TOOL model plate, then you will get a product made in China that meets the highest quality standard - the LH standard.
Applications include master, cubic, and demonstration models, as well as design and shape studies
Technical parameter
| Style | LH-TOOL MB-0600 |
| Color | Brown |
| Density(ISO 1183) g/cm3 |
0.60
|
|
Applications |
Master models, Cubing models,
Patterns
|
|
Keyproperties |
Fine surface structure
> Easily shaped and machined
> Low coefficient of thermal expansion
> Good dimensional stability
|
| Hardness(ISO868)Shore D |
50-55 |
|
Coefficient of thermal expansion
(ISO11359)10-6K-1 |
50-55 |
|
Deflection temperature
(ISO 75) °C |
70-75 |
|
Compressive strength
(ISO 604) MPa |
15-20 |
|
Flexural strength
(ISO 178) MPa |
15-20 |
| Size mm |
1500 x 500 x 25 mm |
