82D Hardness 0.98 Density Epoxy Tooling Board Heat resistant up to 200C
Product Details
| Materials: | Epoxy Resin | Color: | Brown |
|---|---|---|---|
| Size: | 1500*500* | Density: | 0.98 |
| Hardness: | Shore D78-82 | Thickness: | 50mm 75mm 100mm 150mm 200mm |
| Highlight |
0.98 Density Epoxy Tooling Board,Heat resistant Epoxy Tooling Board,82D Hardness Epoxy Tooling Board |
||
Product Description
82DHardness 0.98 Density Epoxy Tooling Board Heat resistant up to 200C
Product Description
Lh-tool ® high temperature and low die plate provides excellent stability and versatility. Its high glass transition temperature and low thermal expansion coefficient (CTE) make it suitable for vacuum forming applications where other epoxy board products may soften or deform.
Our rigid polyurethane products meet your mold and mold applications. We can provide you with specified different density, different hardness, and different colors of materials, for your prototype design and CNC machining mold to provide powerful help, we provide customers with quality after-sales service, a global marketing network, to create value for customers

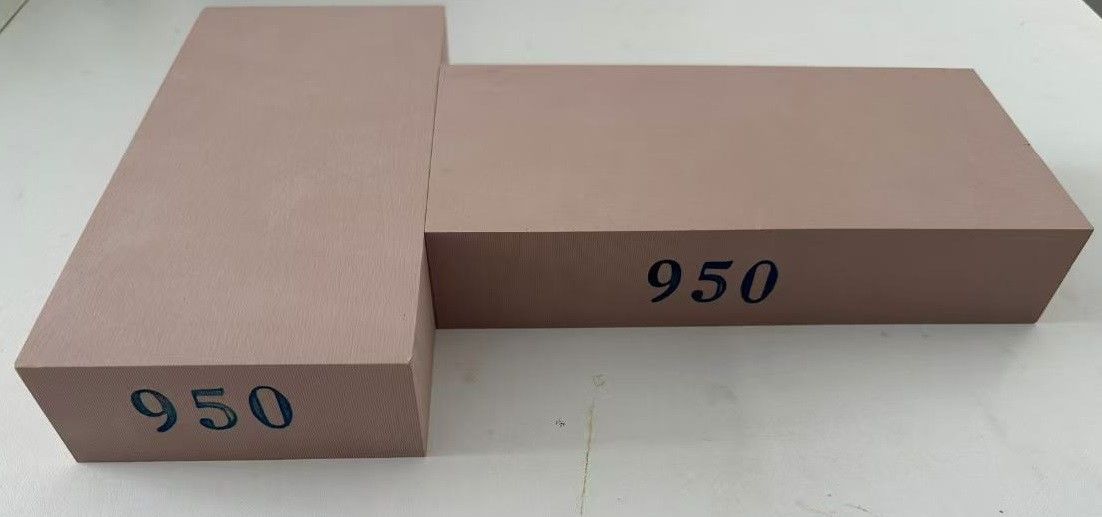

LH TOOL MB950 is a high quality 0.98 kg/m³ epoxy tooling board. This rigid epoxy tooling block is recommended for demanding applications for CNC machining of highly accurate models, patterns or masters as well as production tools/moulds.
Epoxy is the tooling board of choice for high temperature applications and is essential when making prepreg composite moulds or components where, at elevated temperature, this epoxy pattern material will not inhibit the cure of prepregs in the same way that polyurethane (PU) board will.
Board Sizes / Block Sizes
This board is available in 2 thicknesses; 50mm (2") and 100mm (4") and a range of sizes up to 500mm x 1500mm (19" x 59"), please select the thickness and block size you require from the drop-down menu at the top of the page.
Characteristics,
1.Continuous use, temperature up to 200 degrees C
2.Good processing performance
3.Good dimensional stability
4.Low coefficient of thermal expansion
5.Good abrasion resistance
Application
1.Lay-up tooling for prepregs
2.Vacuum forming die
3.High temperature application
4.Foundry pattern plates and core boxes
| Performance | standard | Data |
| Color |
Brown |
|
| Density | ISO 815) g / cm³ | 0.98 |
| Shore hardness | (ISO805) Shore D | 78-82 |
| Coneffcient of thermal expansion | (ISO 4897)10-6 K-1 | 20-30 |
| Deflection temperature | (ISO 075 ) ℃ | 190-200 |
| Flexural strength | (ISO 178) Mpa | 45-45 |
| Compresstive strength | (ISO 604) Mpa | 70-80 |
